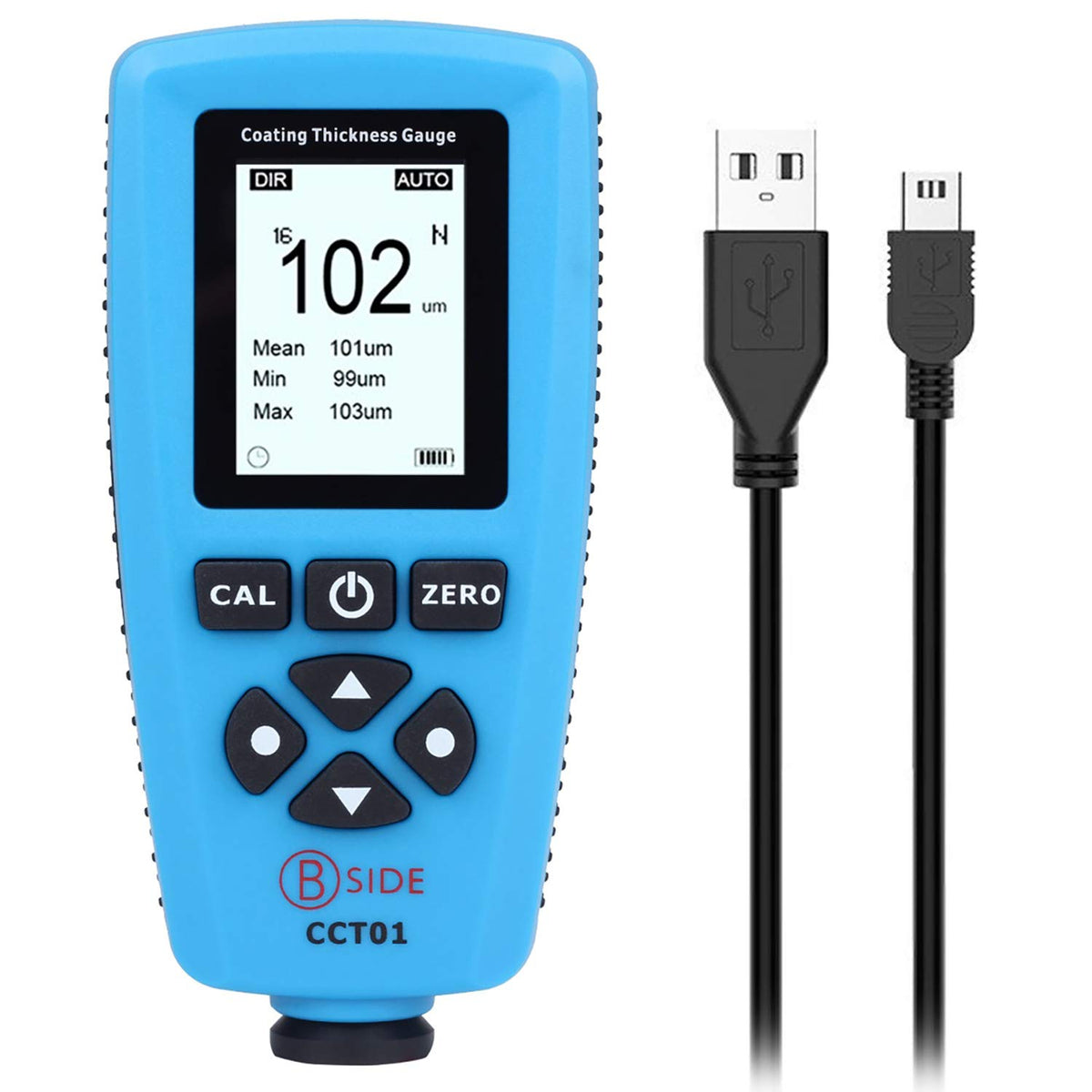

Digital Paint Coating Thickness Gauge with Auto F/N Probe 2000um G8151
Digital Paint Coating Thickness Gauge with Auto F/N Probe 2000um G8151
[F-Probe/Magnetic Induction]: Measures the thickness of non-magnetic coating layers on magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).
[N-Probe/Eddy Current]: Measures the thickness of nonconductive coating layers covered on nonferrous substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).
[High Accuracy]: Mearsuring Range: 0 to 2000um (0 to 78.7mils); Units: um, mm and mils; Accuracy: F-probe ��(3%+1um), N-probe ��(3%+1.5um); Resolution: 0-99.9um (0.1um), 100~999um(1um), >1000um (0.01mm).
[Easy to Use]: User does all operations via standard menu so easily; Power off automatically; USB interface to data transmission; Low battery and error indication; User can set high or low limit alarm for each group. Support for English and German.
[Wide Application]: Widely used in manufacturing company, shipbuilding, aircraft industries, metal machinery industry, chemical industry, especially in automobile/car trading. Support for English and German.
Features:
- 128 x 128 LCD display, standard menu operations
- Two measure modes: single and continuous
- Two group modes: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode
- Zero point calibration and multi-point calibration (up to 4 points) for each group
- The users can recall, delete specified readings, or delete group readings
- Statistics display: mean, minimum, maximum and standard deviation
- Three probe modes: auto, magnetic and eddy current
- User can set high or low limit alarm for each group
- Support for English and German
- Auto Power off
- USB interface for data transmission
- Low battery and error indication
Specifications:
- Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe)
- Measuring range: 0 ~ 2000um (0 to 78.7mils)
- Units: um, mm and mils
- Resolution: 0-99.9um (0.1um), 100~999um(1um), >1000um (0.01mm)
- Accuracy: F-probe, �� (3%+1um); F-probe, �� (3%+1.5um)
- Minimum thickness of substrate: F-probe: 0.5mm, N-probe: 0.3mm
- Operation temperature: 0�� to 40��(32�H to 104�H)
- Storage temperature: -20�� to 70��(-4�H to 158�H)
- Powered: 2 x AAA battery
- Size: 110mm*53mm*24mm
- Weight: 92g
Package Includes:
1 x Coating Thickness Gauge
2 x Substrate
1 x CD
5 x Standard Foil
1 x USB Cable
1 x User Manual
Note:
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
